Forged Fittings
Manufacturer of Forged Fittings
Forged fittings are components used in piping systems to connect, adapt, or terminate pipelines. These fittings are typically made by shaping or forming metal using heat and pressure through a forging process. Forging involves heating the metal to a high temperature and then applying pressure to shape it into the desired form. This process results in fittings that have high strength and durability.
Forged fittings are preferred in high-pressure and high-temperature applications due to their superior strength and resistance to leakage. They are commonly used in industries such as oil and gas, petrochemicals, power generation, and chemical processing. Proper selection and installation of forged fittings are crucial to ensure the integrity and safety of the piping system.
-
ASTM A182 / A105 / A350 / B564
-
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
-
Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Types of Forged Fittings
Elbow
Tee
Coupling

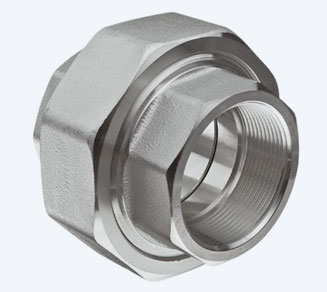

Union

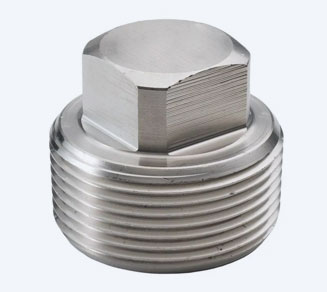

Plug
GENERAL INFORMATION
| Standard | ANSI, ASME, BS, DIN, JIS, EN |
| Class | 2000 LBS - 9000 LBS |
| Dimension | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8" NB TO 4" NB |
| Schedule | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Type | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
| Materials | Stainless Steel, Carbon Steel, Alloy Steel, High Nickel Alloys, Special Alloys, Aluminium Alloys, Copper Nickel, Titanium, Duplex & Super Duplex, Tantalum etc. |
| Specification for High Nickel Alloy | ASTM B564 / ASME SB564 |
| Specification for Alloy Steel | ASTM A182 / ASME SA182 |
| Specification for Duplex & Super Duplex | ASTM A182 / ASME SA182 |
| Specification for Stainless Steel | ASTM A182 / ASME SA182 |
| Specification for Carbon Steel | ASTM A105 / ASME SA105 |

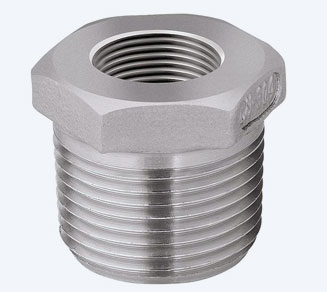

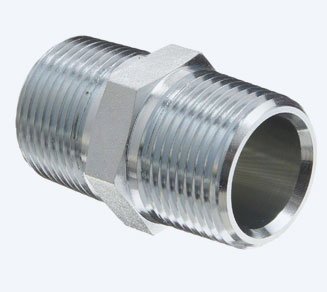

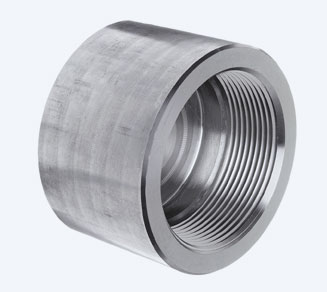

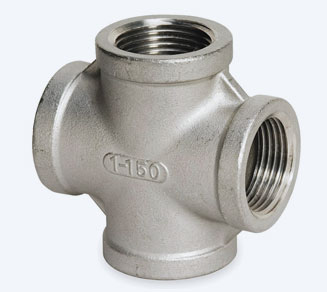

| Form | Elbow, Tee, Cross Tee, Threaded Pipe Cap, Threaded Union, Full Coupling, Half Coupling, Reducing Coupling, Hex Nipple, Hex Head Plug, Square Head Plug, Hex Head Bushing, Swage Nipple, Concentric Swage Nipple, Sockolet, Weldolet, Threadolet |
| DN | Nom. Pipe Size |
Center to End Elbows.Tees.Cross A |
Center to End 45° Elbow C |
Outside Diameter of Band H |
Minumum Wall Thickness G |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 |
| DN | Nom. Pipe Size |
End to End Couplings W |
End to End Caps P |
Outside Diameter D |
End Wall Thickness G Min. |
Length of Thread. Min.(1) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| 3000&6000 | 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | B | L2 | ||
| 6 | 1/8 | 32 | 19 | … | 16 | 22 | 4.8 | … | 6.4 | 6.7 |
| 8 | 1/4 | 35 | 25 | 27 | 19 | 25 | 4.8 | 6.4 | 8.1 | 10.2 |
| 10 | 3/8 | 38 | 25 | 27 | 22 | 32 | 4.8 | 6.4 | 9.1 | 10.4 |
| 15 | 1/2 | 48 | 32 | 33 | 28 | 38 | 6.4 | 7.9 | 10.9 | 13.6 |
| 20 | 3/4 | 51 | 37 | 38 | 35 | 44 | 6.4 | 7.9 | 12.7 | 13.9 |
| 25 | 1 | 60 | 41 | 43 | 44 | 57 | 9.7 | 11.2 | 14.7 | 17.3 |
| 32 | 1-1/4 | 67 | 44 | 46 | 57 | 64 | 9.7 | 11.2 | 17.0 | 18.0 |
| 40 | 1-1/2 | 79 | 44 | 48 | 64 | 76 | 11.2 | 12.7 | 17.8 | 18.4 |
| 50 | 2 | 86 | 48 | 51 | 76 | 92 | 12.7 | 15.7 | 19.0 | 19.2 |
| 65 | 2-1/2 | 92 | 60 | 64 | 92 | 108 | 15.7 | 19.0 | 23.6 | 28.9 |
| 80 | 3 | 108 | 65 | 68 | 108 | 127 | 19.0 | 22.4 | 25.9 | 30.5 |
| 100 | 4 | 121 | 68 | 75 | 140 | 159 | 22.4 | 28.4 | 27.7 | 33.0 |
