Plates
Manufacturer of Plates
A plate, on the other hand, is a thicker piece of metal that has
been produced (rolled) as a single item . Plates are typically thicker than 6mm,
although they can range from as low as 2mm to as high as 150mm or more. Plates
are often used in applications that require higher strength and durability, such
as in construction, shipbuilding, and heavy machinery.
These plates are typically made from carbon steel or alloy steel
and can vary in size, thickness, and composition to suit specific requirements.
The choice of steel plate type, size, and thickness depends on the specific
needs of a project or application, considering factors like load-bearing
capacity, environmental conditions, and required durability.
-
ASTM A240 / A387 / B168 / B127 / B162 / B463
-
Soft, Hard, Half Hard, Quarter Hard, Spring Hard
-
MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Types of Plates

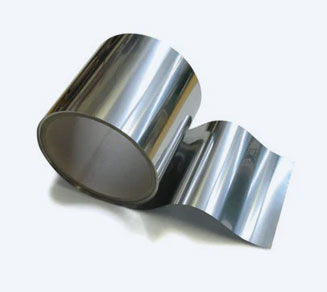

Shim
Perforated
Chequered

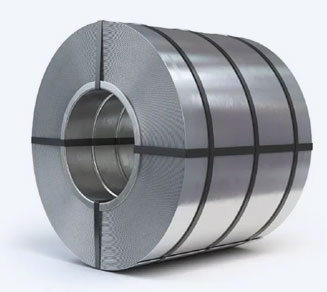

Coils
Strip
GENERAL INFORMATION
| Dimension | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Size Range | Cold Rolled : 0.5-6.4 mm Hot Rolled : 3.0–10.0 mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Thickness | 0.3 mm to 120 mm |
| Tolerances (width / thickness | EN 10258/ DIN 59381 / EN 10151 / EN 10088 |
| Materials | Stainless Steel, Carbon Steel, Alloy Steel, High Nickel Alloys, Special Alloys, Aluminium Alloys, Copper Nickel, Titanium, Duplex & Super Duplex, Tantalum etc. |
| Specification for High Nickel Alloy | ASTM B168, B127, B162, B122, B463, B265 / ASME SB168, SB127, SB162, SB122, SB463, SB265 |
| Specification for Alloy Steel | ASTM A387 / ASME SA387 |
| Specification for Duplex & Super Duplex | ASTM A240 / ASME SA240 |
| Specification for Stainless Steel | ASTM A240 / ASME SA240 |
| Specification for Carbon Steel | ASTM A516, A517 / ASME SA516, SA517 |
| Form | Sheet, Perforated Sheet, Chequered Plate, Coils, Plate, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle) |
| Plate Thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
| 3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
| 4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
| 5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
| 6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
| 8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
| 10 | 78.5 | 94 | 118 | 141 | 188 |
| 12 | 94.2 | 113 | 141 | 170 | 226 |
| 16 | 125.6 | 151 | 188 | 226 | 301 |
| 20 | 157 | 188 | 236 | 283 | 377 |
| 22 | 172.7 | 207 | 259 | 311 | 415 |
| 25 | 196.25 | 236 | 294 | 353 | 471 |
| 28 | 219.8 | 264 | 330 | 396 | 528 |
| 32 | 251.2 | 301 | 377 | 452 | 603 |
| 36 | 282.6 | 339 | 424 | 509 | 678 |
| 40 | 314 | 377 | 471 | 565 | 754 |
| 45 | 353.25 | 424 | 530 | 636 | 848 |
| 50 | 392.5 | 471 | 589 | 707 | 942 |
| 55 | 431.75 | 518 | 648 | 777 | 1036 |
| 60 | 471 | 565 | 707 | 848 | 1130 |
| 65 | 510 | 612 | 765 | 918 | 1224 |
| 70 | 549.5 | 659 | 824 | 989 | 1319 |
| 75 | 588.75 | 707 | 883 | 1060 | 1413 |
| 80 | 628 | 754 | 942 | 1130 | 1507 |
| 90 | 706.5 | 848 | 1060 | 1272 | 1696 |
| 100 | 785 | 942 | 1178 | 1413 | 1884 |
